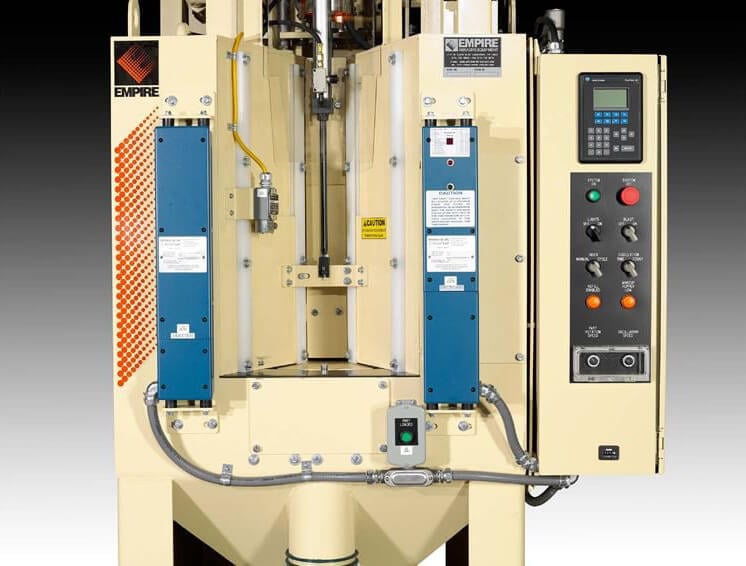

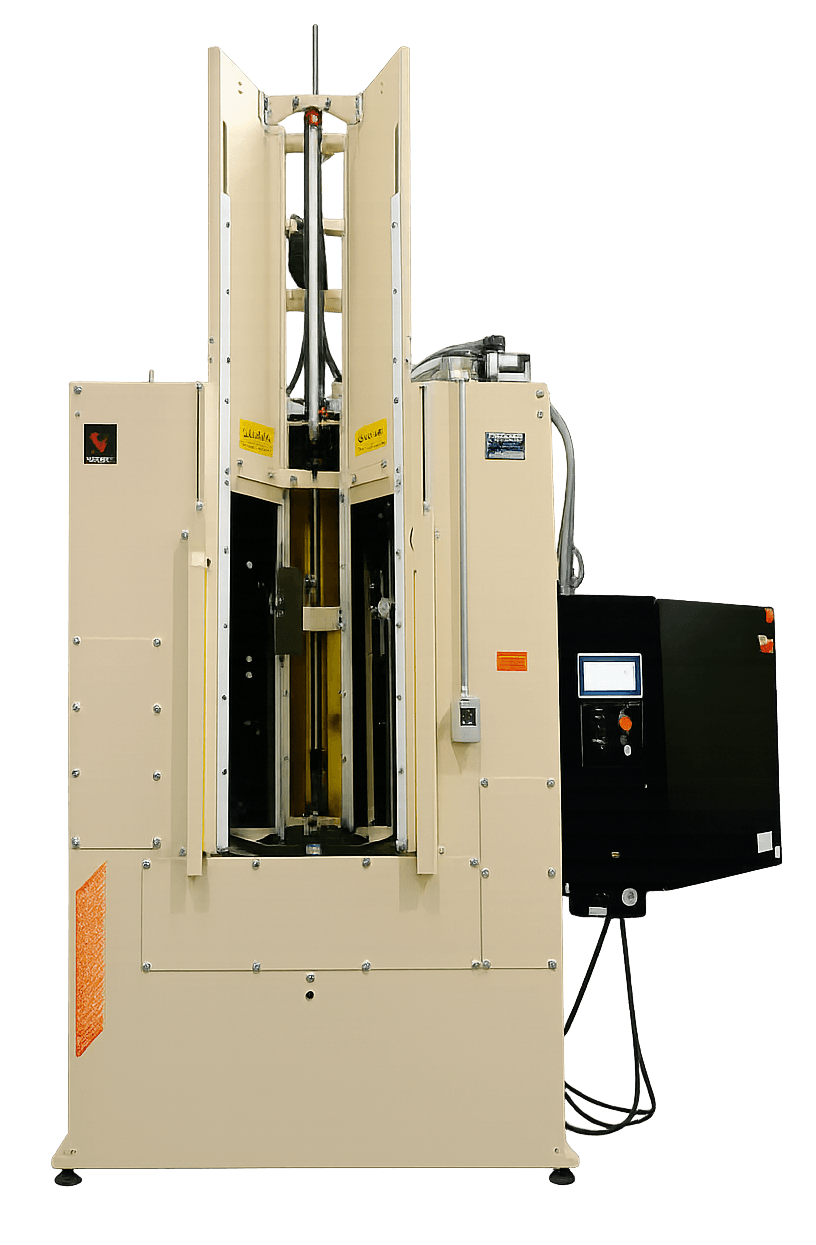

- These machines use a programmable, indexing turntable to move parts through the blasting process.
- Designed for precise positioning of workpieces in front of blasting nozzles, ensuring repeatable results.
- The turntables can have multiple rotating part stations, which provides complete part coverage.
- Nozzle manipulation options include stationary nozzles, horizontal/vertical linear operations, and robotic movement.
- Can be configured with 2 to 24 rotating part stations, depending on production needs.
- Loading and unloading can be done manually or with robotic systems.
- Indexing turntable machines are versatile, easy to operate, and economical.
- Suitable for a variety of applications, including cleaning, peening, and surface preparation.
- An indexing turntable system can do the job of multiple manual blast cabinet machines, optimizing workspace.
- TT-20 indexing turntables are compact and designed for cleaning or peening. They are available with 4 suction or pressure nozzles. The TT-20 can be modified with a 12 station configuration for medical components or a pressurized part rotation station for aerospace components.
- TT-36 systems feature a heavy-duty blast enclosure and a vertical ball screw oscillator with adjustable blast guns. Configurations can range from 6 to 12 rotating part stations.
Machine Options
Item # | Number of Stations | Capacity per Station | Diameter | Maximum Part Size (dia x height) | Suction Guns | Pressure Nozzles |
---|---|---|---|---|---|---|
TT-20 | 6-12 | 20 lb | 20 Inch | 6" x 14" | Up to 8 | Up to 6 |
TT-36 | 6-12 | 20 lb | 30 Inch | 12" x 20" | Up to 12 | Up to 8 |
TT-48 | 6-12 | 20 lb | 48 Inch | 20" x 20" | Up to 24 | Up to 8 |

Click Buttons To View More Information

- Conventional Indexing Turntable Systems
- Batch Style Indexing Turntable Systems
- Pressure Blast Systems
- Suction Blast Systems
- Nozzle Manipulation
- Sound Proofing/Ionized Blow-off Nozzles/Safety Light Curtains
- CAD Drawings
Conventional Indexing Turntable Systems

Grit-Blast-12-Station-Indexing-Turntable



Batch Style Indexing Turntable Systems

Grit-Blast-TT20-Batch-Style-1



Pressure Blast Systems

Grit-Blast-Automation-Pressure-Vessel



Suction Blast Systems

Grit-Blast-Suction-Blast-Guns



Nozzle Manipulation

Grit-Blast-Ball-Screw-Oscillation-1



Sound Proofing/Ionized Blow-off Nozzles/Safety Light Curtains

Grit-Blast-Ionizing-Blow-Off



CAD Drawings

TT20-Indexing-TT-Pressure
