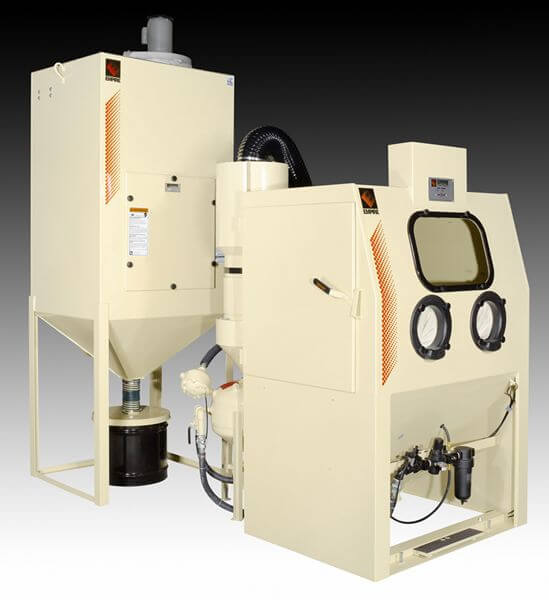

Pro-Finish® Blast Cabinets

If your operations involve cleaning with chemicals, acid etching or dipping, liquid honing, wire brushing, sanding, deburring, grinding or peening, moving up to a Pro-Finish® cabinet will normally expedite work, improve quality and eliminate the environmental problems associated with chemical finishing.

Built for production blasting, these rugged cabinets enable you to perform a long list of tasks ranging from blending surface flaws to removing foreign matter, such as carbon from pistons, without affecting tolerances. By simply varying air pressure and blast media, you can perform almost any surface finishing job more quickly and precisely than with alternative methods.

Pro-Finish cabinets can be specified with either suction or pressure blast systems – a pressure system being the preferred choice for faster production and more precise control of media at both high and low operating pressures. In addition, they are available in seven sizes and loaded with standard features that reduce operating and maintenance costs.

Modular design, plus an extensive range of factory options, lets you select a system that’s just right for your applications.

Machine Options

Model Number Interior Dimensions Overall Dimensions Door Opening Height Door Opening Width Standard Number of Doors Reclaimer Ventilation Rate Exhaust Fan Motor
2636 26" x 36" x 30" 28" x 42" x 70" 22 Inch 20 Inch 1 400 ft³/min
600 ft³/min
1 hp
3648 36" x 48" x 36" 38" x 54" x 72" 32 Inch 29 Inch 2 400 ft³/min
600 ft³/min
1 hp
1-1/2 hp
3660 36" x 60" x 36" 38" x 66" x 72" 32 Inch 29 Inch 2 600 ft³/min
900 ft³/min
1-1/2 hp
2 hp
3674 36" x 74" x 36" 38" x 80" x 72" 32 Inch 29 Inch 2 900 ft³/min 2 hp
4848 48" x 48" x 36" 50" x 54" x 72" 32 Inch 41 Inch 2 600 ft³/min
900 ft³/min
1-1/2 hp
2 hp
6060 60" x 60" x 44" 62" x 66" x 78" 40 Inch 50 Inch 2 900 ft³/min 2 hp
7272 72" x 72" x 62" 74" x 78" x 89" 58 Inch 64 Inch 1 900 ft³/min
1200 ft³/min
2 hp
5 hp

Standard Features

  • Rubber, cloth-lined gloves
  • Ergonomic glove rings with operator armrests
  • 90-watt spotlights
  • Dust-off gun
  • Pneumatic foot-treadle control
  • 14″” x 22″” safety-glass window
  • General purpose filter
  • Leveling bolts
  • OSHA door switch
  • 14-gauge construction
  • 3/16″” perforated floor with 1000-lb capacity
  • Sure-Flo® media regulator (pressure systems)
  • One-cubic-foot ASME pressure vessel (pressure systems)

Pro-Finish® Options

  • Turntables facilitate handling of heavy parts. (Manual turntable with dolly and outside platform shown to right.)
  • Additional nozzles or guns (up to a total of two nozzles with pressure and up to four guns with suction) automate the blasting process when synchronized with powered oscillators and turntables.
  • Rotating basket with timer speeds processing of smaller parts.
  • Fixed-gun holder with adjustable arm frees both operator hands for parts blasting.
  • Extended-wear options prolong equipment life while minimizing maintenance and downtime. Options include: rubber curtains in black or white; window protectors; heavy-duty, media-conveying duct; and DiCarb® or boron nozzles. Reclaimers can be upgraded with replaceable wear plates or lined with Ultrawear.
  • Automatic bag shaker frees operator for other tasks with bag-house dust collectors.
  • Fully automatic photohelic controls purge dust from cartridge-type collectors without operator assistance.
  • Rubber safety mats, placed around Pro-Finish cabinets, keep the immediate work area clean and reduce operator fatigue.

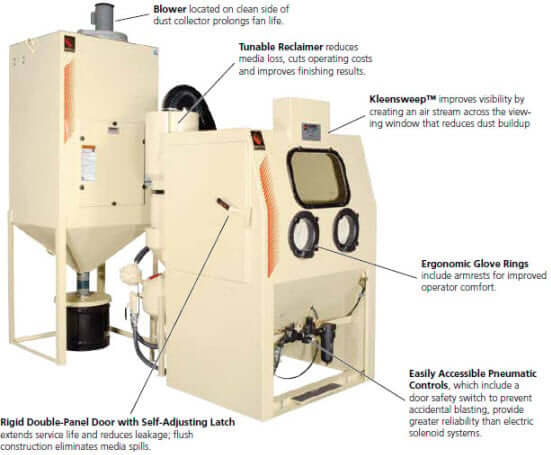

Features
