PRS Blast & Recovery Systems

Reduce Operating Costs & Improve Finishes

Using “economical” blast media, such as slag, for industrial blasting can be very costly indeed. Because these low-cost abrasives break down so quickly, reusing them is impractical. As a result, you’re constantly paying for replacement media, disposal of spent media, and manhours to move this material around – all of which can put a big drain on your profits.

With Empire’s pneumatic Blast & Recovery System (PRS), you can tap the cost-saving advantages of more durable media for only a modest investment. Empire’s PRS lets you move up to recyclable media, such as aluminum oxide, chilled iron and steel grit, which can be used effectively over and over – from 6 to 200 times. The result is usually a very attractive return on investment in media savings alone.

Reusable media are also faster acting and less dusty, meaning you get the additional advantages of increased productivity and a cleaner working environment. With the PRS, you can move blasting operations into enclosures to comply with increasingly stringent environmental regulations. And, because the PRS recycles good media while removing dust and fines, blasting results are more consistent.

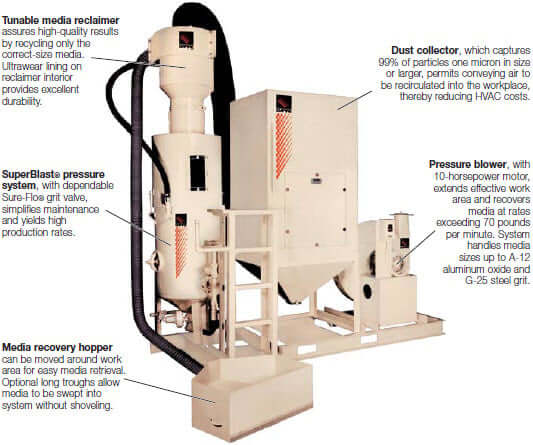

Simple blast controls and convenient media-loading procedures make Empire’s PRS very easy to operate. A built-in access ladder and viewing window in the system’s storage hopper are just two examples of the PRS’s many friendly features. And, with heavy-duty duct, an Ultrawear-lined reclaimer, and a silicone carbide nozzle, you know the system is designed to last.

Skid chassis is standard.
All models available with optional dolly chassis for mobility.

Machine Options

Model Number Item # Blast System
PRS-6 245006 Mounts to 650 pot
PRS-6CDC 245007 Mounts to 650 pot, includes CDC collector
PRS-6S 247106 Includes SuperBlast 650 pot
PRS-6SCDC 247107 Includes SuperBlast 650 pot & CDC collector
PRS-10 245010 Mounts to 1050 pot
PRS-10CDC 245011 Mounts to 1050 pot, includes CDC collector
PRS-10S 247110 Includes 1050 SuperBlast pot
PRS-10SCDC 247111 Includes 1050 SuperBlast pot & CDC collector

Options

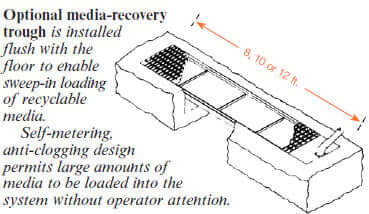

Optional Media Recovery Trough

Features

Product Features

Media Reclamation

  • Rugged, 12-gauge, welded-steel construction
  • Ultrawear lining with externally replaceable wearplate
  • Tunable to various media sizes
  • 800 CFM ventilation

The Sure-Flo® Media Regulator

Sure-Flo-Grit-Valve

Safety

We support our portable blasters and blast rooms with a complete line of modern safety equipment that protects operators and complies with OSHA when properly applied and maintained. All devices affecting breathing-air quality should be inspected and serviced regularly, particularly when a multi-purpose compressor is used to supply breathing air.

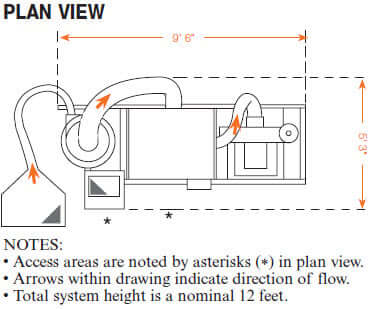

Plan View

Plan-View

Media Recovery Hopper

  • 11-gauge, welded-steel construction
  • Anti-clogging refuse screen
  • 30″ wide x 30″ deep x 12″ high

Media Conveying Duct

  • 4″ ID x 25′ long-Heavy-duty construction

Media Storage Hopper

  • 11-gauge, welded-steel construction
  • Viewing window
  • Capacity: 6.5 ft³ with PRS-6 models
  • Nominal diameter: 24″ on PRS-6 models

Dust Collector/DCM-200 HV (High Vacuum)

  • 14-gauge, welded-steel, reinforced construction
  • 200 ft² filtration with 30 cotton-sateen bags
  • Large access door; raised clean-out door
  • Push-button, pneumatic cleaning

Warranty

BEST WARRANTY IN THE INDUSTRY
Three-years limited on parts and labor

Empire Air-Blast Products

  • A complete range of cabinets
  • Robotic, turntable and in-line automation
  • Blast rooms and blast booths
  • Portable blasters
  • A full line of parts and accessories

NEVER USE SILICA SAND IN ANY EMPIRE EQUIPMENT

Information subject to change without notice.
