Pro-Lifter Air Blast Cabinets

Empire Pro Lifter

Resources

Videos

PF2636PRC-6 Prolifter System
The Industries We Serve

Designed for operator comfort, Pro-Lifter air blast cabinets feature an easy-to-use toggle switch on the front panel, allowing operators to raise or lower the entire cabinet by up to 10 inches for optimal working height.

Pro-Lifter Package Includes:

The Pro-Lifter package can be added to Pro-Finish and Ergo-Blast cabinet models 2636, 3648, and 4848.

  • Electrically controlled hydraulic lifting cylinders at all four corners
  • 10-inch vertical adjustment range (40”–50” glove centerline; standard Pro-Finish glove hole height is fixed at 44”)
  • Front-mounted toggle switch for easy height adjustment
  • 115V power requirement (separate electrical source needed)
  • Bracket for repositioning media hopper and reclaim next to the machine

Customization & Modified Options Available:

  • Skid-mounted hydraulic column for independent cabinet movement
    • Allows height adjustment without moving the base
    • Media hopper and reclaim can be attached directly to the cabinet
    • Entire machine can be relocated via forklift

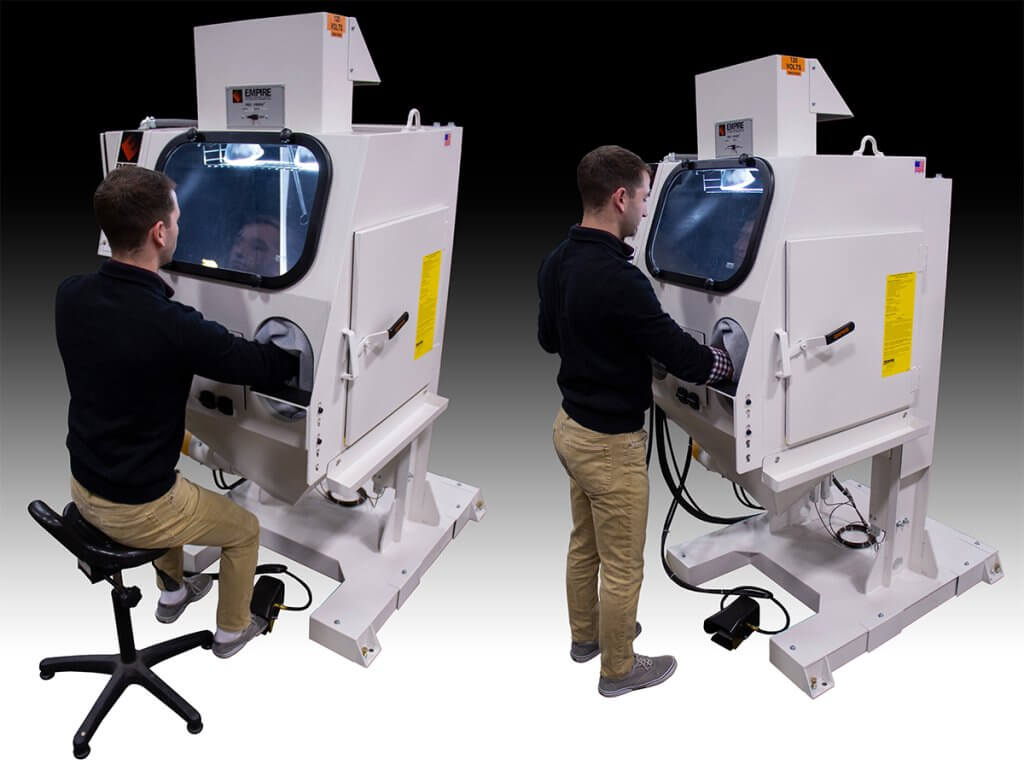

Operators can raise or lower the entire cabinet by up to 10 inches for optimal working height
Item # Interior Dimensions (D x W x H) Overall Dimensions (D x W x H) Number of Doors Blast Hose Height Adjustment
2636 26 x 36 x 30 Inch 28 x 42 x 70 Inch 1 Standard 1/2 ID x 10 ft. Up to 10 Inch stroke
3648 36 x 48 x 36 Inch 38 x 54 x 72 Inch 2 Standard 1/2 ID x 10 ft. Up to 10 Inch stroke
4848 48 x 48 x 36 Inch 50 x 54 x 72 Inch 2 Standard 1/2 ID x ft. Up to 10 Inch stroke
