IL-885 Conveyor Cabinets costs 60 to 70 percent less than an automated in-line blast system, but delivers comparable results when used on short-production runs. Designed specifically for economy and light production, this cabinet incorporates all the proven features of Empire’s standard Pro-Finish® line.
| Interior Dimensions | 32″×36″×30″ |
| Overall Dimensions | 53″×76″×68″ |
| Door Opening Height | 28 Inch |
| Door Opening Width | 30 Inch |
| Inlet & Exit Vestibule Sizes (H × W) | 8.5 × 8 Inch |
| Di-Carb® Nozzle | (4 or 6) 3/8″ |
| Air Jet | (4 or 6) 5/32″ |
| Reclaimer Ratings at 6″ S.P. | 600, 900, 1200 |
Image Gallery

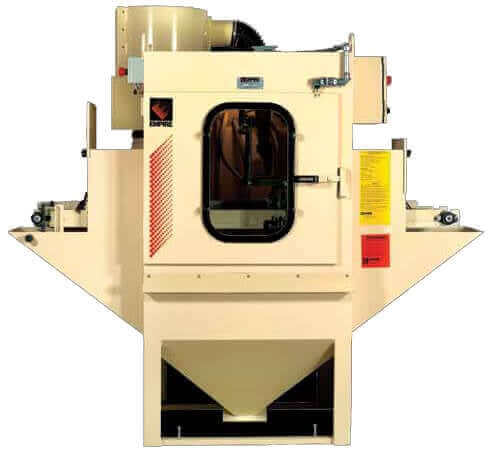

IL-885
Click any image to view larger version

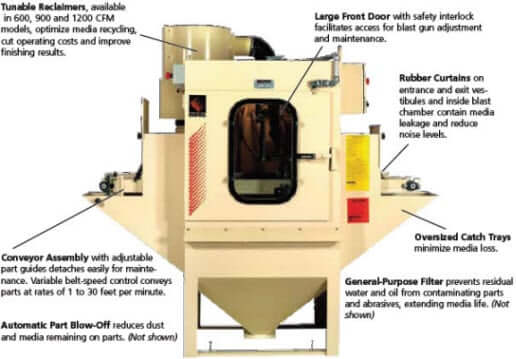

Standard Features
- Compact design
- Automatic blow-off nozzles at exit
- Easily removed (six bolt) conveyor assembly
- Large front door to facilitate gun adjustments
- Panel with “on/off” for system, lights, blower and blast, plus variable-speed control for conveyor
- Conveyor-stop buttons at entrance and exit of cabinet
- Rear-mounted pipe string for easy access and adjustment
- Rubber curtains at entrance/exit points and inside cabinet to contain media and maintain low noise levels
- Oversized catch tray to minimize media loss
- Fully interlocked front-access door for safety (OSHA)
- Six or four suction guns with individually adjustable holders
