Econo-Finish® Blast Cabinets

  • Economical Systems for Light-Duty Stripping, Cleaning and Finishing

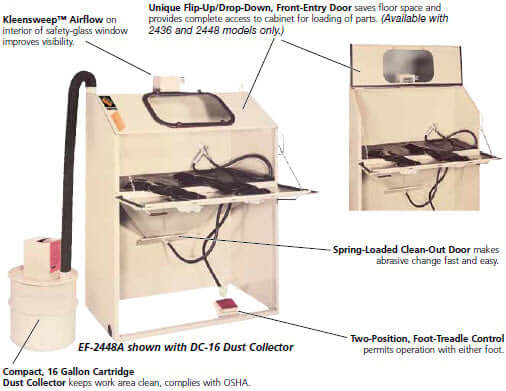

Empire’s inexpensive Econo-Finish® blast cabinets feature a unique front-access door to simplify loading of parts, save floor space and speed finishing operations.

Designed for light-to-medium cleaning and surface finishing jobs, these economical cabinets combine sturdy, 14-gauge steel construction with the features you need to perform a wide range of finishing tasks. All Econo-Finish cabinets are equipped with a foot-treadle blast control for ease of operation, an external media regulation device, quick-change safety glass and a dust-collection system.

In addition, you can select from upgraded features such as production-quality blast guns, a pressure regulator with gauge, long-life blast nozzles and a high capacity dust collector that extends operating intervals between clean-outs. Our DC-16 and DC-30 dust collectors feature a cartridge filter with 16-gallon and 30-gallon dust capacities and built-in silencers.

Econo-Finish cabinets are available in two basic configurations: models with two-piece, swing-down and flip-up doors for maximum interior access and an even more economical unit with a swing-down door only. Models with two-piece doors can be specified with a standard upgrade package designed to extend usage and maximize production.

Partial listing of options available for all models: OSHA Safety door switch, Safety matting, Special electricals, Pressure regulator, Air gauge, Di-Carb™ and Boron nozzles.

Machine Options

Model Number Item # Overall Dimensions, Cabinet (D x W x H) Interior Dimensions (D x W x H) Gloves Door Opening Width Door Opening Height Door Type
EF-2430B 114013 24 x 30 x 65 Inch 24 x 30 x 23 Inch Rubber, Cloth Lined, 8" diameter 29 Inch 14 Inch Single
EF-2436A 115011 24 x 36 x 65 Inch 24 x 36 x 23 Inch Rubber, Cloth Lined, 8" diameter 35 Inch 23 Inch Double
EF-2436B 115013 24 x 36 x 65 Inch 24 x 36 x 23 Inch Rubber, Cloth Lined, 8" diameter 35 Inch 23 Inch Double
EF-2448A 116011 24 x 48 x 65 Inch 24 x 48 x 23 Inch Rubber, Cloth Lined, 8" diameter 47 Inch 23 Inch Double
EF-2448B 116013 24 x 48 x 65 Inch 24 x 48 x 23 Inch Rubber, Cloth Lined, 8" diameter 47 Inch 23 Inch Double

Standard Features

Cabinet Construction Heavy, 14-gauge steel
Floor Capacity 200 lbs
Gloves Rubber, Cloth Lined, 8″ diameter
Blasting System Suction, Foot Treadle
Piping String 3/8 Inch
Nozzle Material Ceramic
Media Regulator SAR-3

Features

Product Features

Warranty

BEST WARRANTY IN THE INDUSTRY
Three-years limited on parts and labor

Empire Air-Blast Products

  • A complete range of cabinets
  • Robotic, turntable and in-line automation
  • Blast rooms and blast booths
  • Portable blasters
  • A full line of parts and accessories

NEVER USE SILICA SAND IN ANY EMPIRE EQUIPMENT

Information subject to change without notice.
